High Quality Automatic Cable Reel Machine China Manufacturer
JDD Series
Brief Introduction:
Motor-driven cable reel is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven type and three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cables under 500V and high voltage cables for 6kv and 10kv.
1. For different power cable, such as 3x120+1x35, 3x95+1x35 etc
2. Its driven by the electric motor
3. The cable reel is usually fixed on the mobile machine and works horizontally.
4. Additional turnover anchor will be provided if the power is feed centrally
5. Additional control cabinet is also equipped.
Features:
- for large specification and long distance power supply cable
- keep in synchronous with the mobile electric apparatus
Technical Data:
Overall Dimension: Item | A | B | C | D1 | D2 | d | E | F | H | I | K | W | Weight kg | 1 | 880 | 800 | 910 | 1000 | 1600 | 26 | 1200 | 1800 | 1370 | 100 | 110 | 250 | 960 | 2 | 880 | 800 | 910 | 1000 | 1800 | 26 | 1200 | 1800 | 1370 | 100 | 110 | 250 | 980 | 3 | 880 | 800 | 910 | 1000 | 2000 | 26 | 1200 | 1800 | 1370 | 100 | 110 | 250 | 1010 | 4 | 880 | 800 | 910 | 1200 | 2500 | 26 | 1200 | 1800 | 1370 | 100 | 110 | 250 | 1080 | 5 | 880 | 800 | 1000 | 1000 | 1800 | 26 | 1300 | 1900 | 1460 | 100 | 110 | 250 | 1150 | 6 | 880 | 800 | 1000 | 1500 | 2500 | 26 | 1300 | 1900 | 1460 | 100 | 110 | 250 | 1250 |
|
Main Technical Data: Cable Model | Current A | 50m Series | Item | 100m Series | Item | 150m Series | Item | 200m Series | Item | Continuously | 1 min on; 1 min off | UG-6000 3×16+1×10 | 65 | 85 | | | JDD65-100-4G | 2 | JDD65-150-4G | 3 | JDD65-200-4G | 4 | UG-6000 3×25+1×16 | 90 | 120 | JDD90-50-4G | 1 | JDD90-100-4G | 2 | JDD90-150-4G | 3 | JDD90-200-4G | 4 | UG-6000 3×35+1×16 | 110 | 150 | JDD110-50-4G | 1 | JDD110-100-4G | 2 | JDD110-150-4G | 3 | JDD110-200-4G | 4 | UG-10000 3×25+1×16 | 90 | 120 | | | JDD90-100-4GG | 5 | | | JDD90-200-4GG | 6 |
|
Remark:
1. Cable is provided by customers
2. If choosing flat cables, please remark this when place the order
3. G stands for 6KV high voltage cable reel. GG stands for 10KV voltage cable reel.

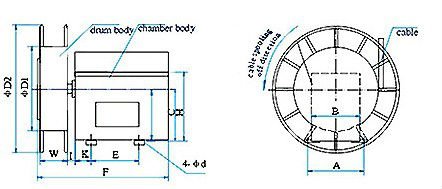

Overall Dimension Drawing:
Physical Product Photo:
Standard Export Package(Automatic Cable Reel Machine):
(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
